Zyxel Référence ITR-8D7DB6D94D

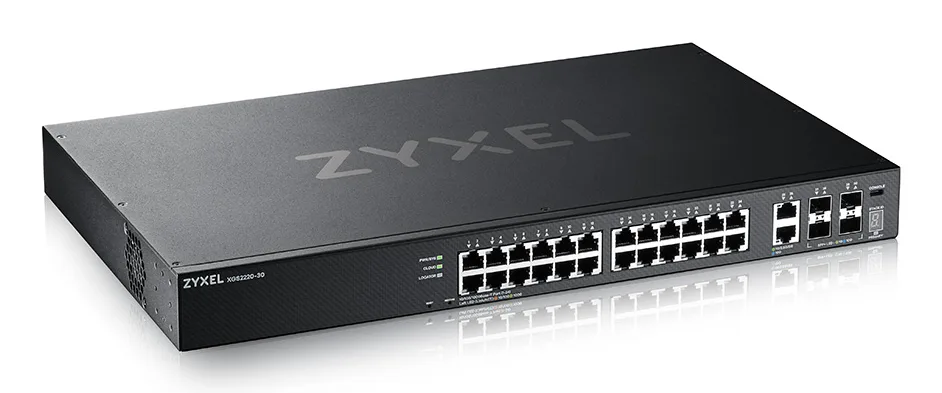

XGS2220-30 L3 Access Switch 24x1G RJ45

XGS2220-30 L3 Access Switch 24x1G RJ45 ZYXEL XGS2220 XGS2220-30 26 Ports Manageable Layer 3 Switch - Gigabit Ethernet, 1...

570,73 € TVA incluse
Stock limité
Demander un devis →
LivraisonCalculée selon votre adresse lors du paiement
GarantieGarantie constructeur applicable
XGS2220-30 L3 Access Switch 24x1G RJ45 ZYXEL XGS2220 XGS2220-30 26 Ports Manageable Layer 3 Switch - Gigabit Ethernet, 10 Gigabit Ethernet - 100/1000Base-T, 10GBase-X, 10GBase-T - 3 Layer Supported - Modular - 37.62 W Power Consumption - Optical Fiber, Twisted Pair - Rack-mountable

Spécifications

Compliance certificates
CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), RoHS
Switching capacity
168 Gbit/s
Forwarding rate
125 Mpps
MAC address table
32000 entries
Static route
Yes
Jumbo frames support
Yes
Packet buffer memory
2 MB
Rack mounting
Yes
Product colour
Black
LED indicators
Yes
Switch type
Managed
Switch layer
L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
ARP inspection
Yes
Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
MLD v1/v2
Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Routing entries
64
Operating temperature (T-T)
-20 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 95%
Storage relative humidity (H-H)
10 - 90%
Heat dissipation
128.28 BTU/h
Package width
616 mm
Package depth
355 mm
Package height
107 mm
Package weight
4.73 kg
Internal memory
1024 MB
Flash memory
64 MB
Mean time between failures (MTBF)
520.185 h
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
10G Ethernet (copper) ports quantity
2
Installed SFP+ modules quantity
4
Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
37.62 W
Power over Ethernet (PoE)
No
GARP VLAN Registration Protocol (GVRP)
Yes
DHCP features
DHCP relay, DHCP server
IGMP snooping
Yes
IGMP proxy
Yes
Security algorithms
SNMP, SNMPv2, SNMPv3
BPDU filtering/protection
Yes
Authentication type
IEEE 802.1x, RADIUS, TACACS+
Width
441 mm
Depth
270 mm
Height
44 mm
Weight
3.4 kg
