Startech.Com SKU ITR-5C9CFA0796

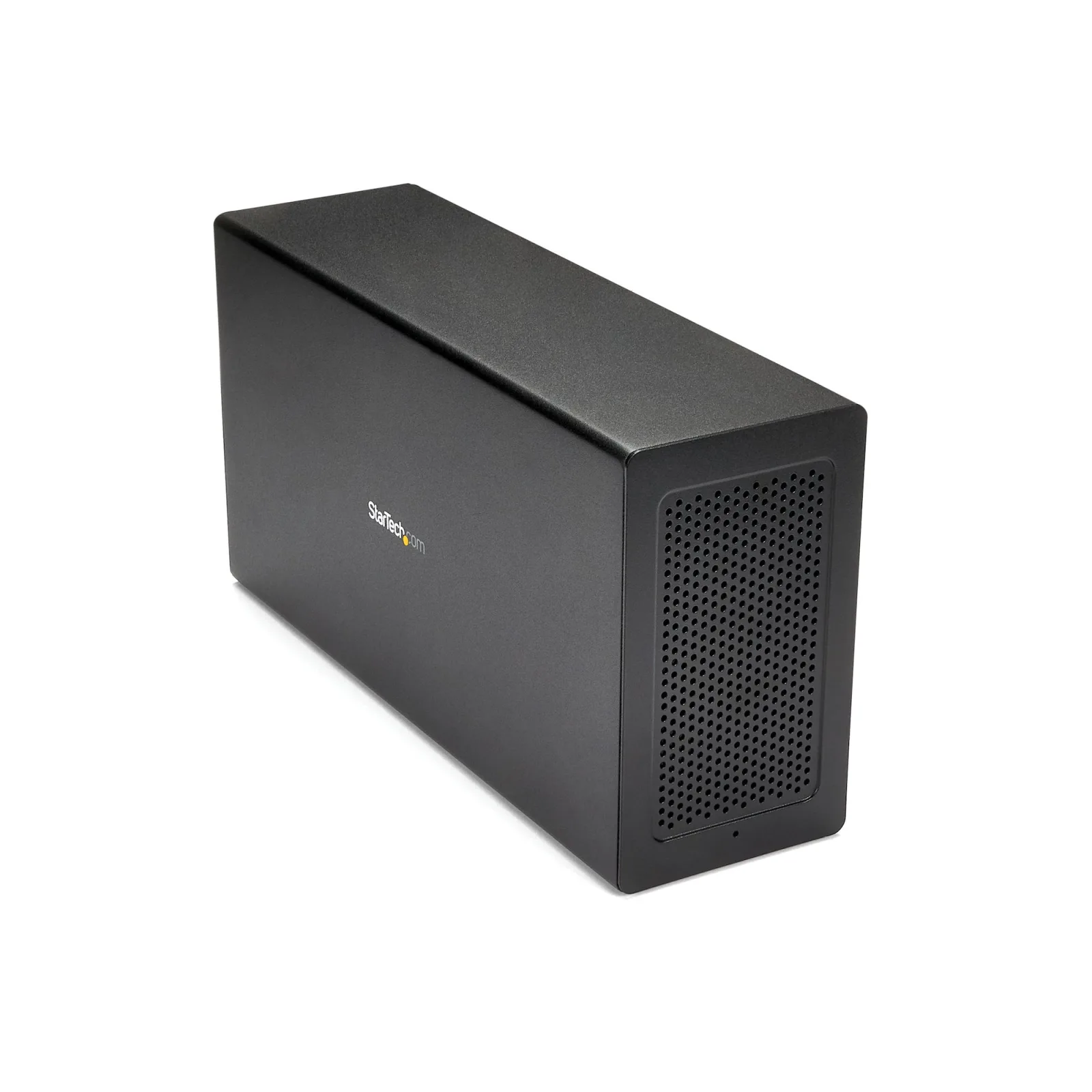

Thunderbolt 3 PCIe Expansion Chassis

Thunderbolt 3 PCIe Expansion Chassis StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure Box with 1x P...

€382.80 incl. VAT
Low stock
Request a quote →
DeliveryCalculated for your address at checkout
WarrantyManufacturer warranty applies
Thunderbolt 3 PCIe Expansion Chassis StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure Box with 1x PCI-Express Slot, 5K/4K Output Via TB3/DP Ports, TAA - Add an external PCI Express 3.0 x16 slot and a DP connection to a Thunderbolt 3 MacBook or laptop - Add a PCIe card such as an: SSD, Ethernet, Fiber, video capture, USB, FireWire, or eSATA card to a Thunderbolt 3 laptop - Thunderbolt 3 to PCIe

Specifications

Built-in fan
Yes
Number of fans
1 fan(s)
Bearing type
Sleeve bearing
Fan diameter
6 cm
Noise level
24.55 dB
Maximum airflow
14.06 cfm
Products per master (outer) case
3 pc(s)
Master (outer) case width
467 mm
Master (outer) case length
384 mm
Master (outer) case height
331 mm
Harmonized System (HS) code
84733020
Ethernet LAN
No
Operating temperature (T-T)
5 - 35 °C
Storage temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
20 - 80%
Cable length
0.5 m
Chipset
Intel - Alpine Ridge DSL6540
Maximum port bandwidth
3.94 GB/s
Cables included
Thunderbolt
AC adapter included
Yes
Quick start guide
Yes
Package width
471 mm
Package depth
239 mm
Package height
94 mm
Package weight
3.1 kg
Card reader integrated
No
Data transfer rate
40 Gbit/s
Product colour
Black
LED indicators
Power
Rubber feet
Yes
Housing material
Aluminium, Steel
Connectivity technology
Wired
Host interface
Thunderbolt 3

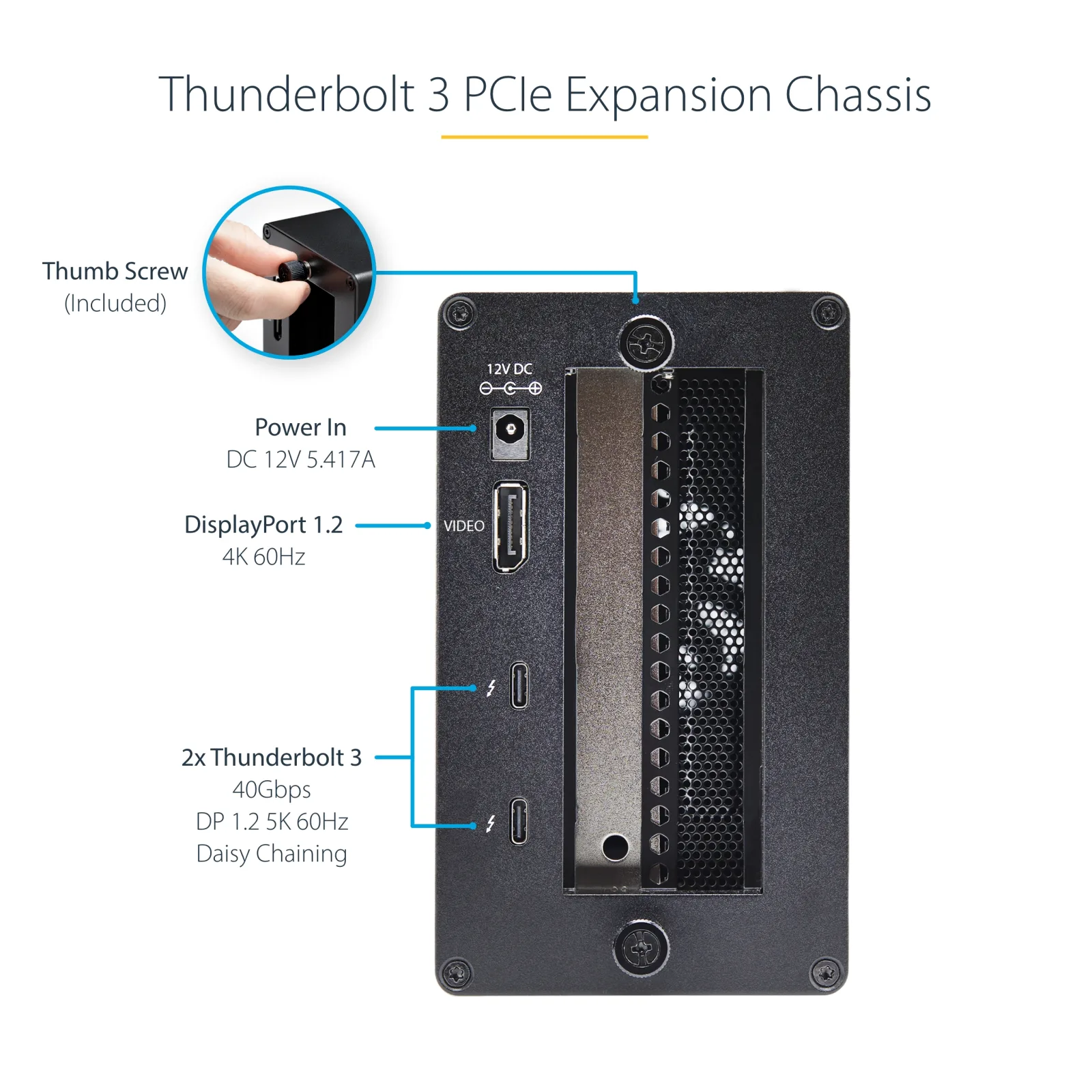

DisplayPorts quantity
1
Thunderbolt 3 ports quantity
2
DC-in jack
Yes
Power source type
DC
AC input voltage
100 - 240 V
Input current
2 A
Output voltage
12 V
Output current
5.417 A
Power consumption (typical)
65 W
Power plug type
Type N
Compatible power plug types
AU, EU, JP, UK, US
Wireless charging
No
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac compatibility
Yes
Mac operating systems supported
Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Sustainability compliance
Yes
Compliance certificates
CE, RoHS
Width
142 mm
Depth
280 mm
Height
82 mm
Weight
1.6 kg
