Lenovo SKU ITR-7BEE39756B

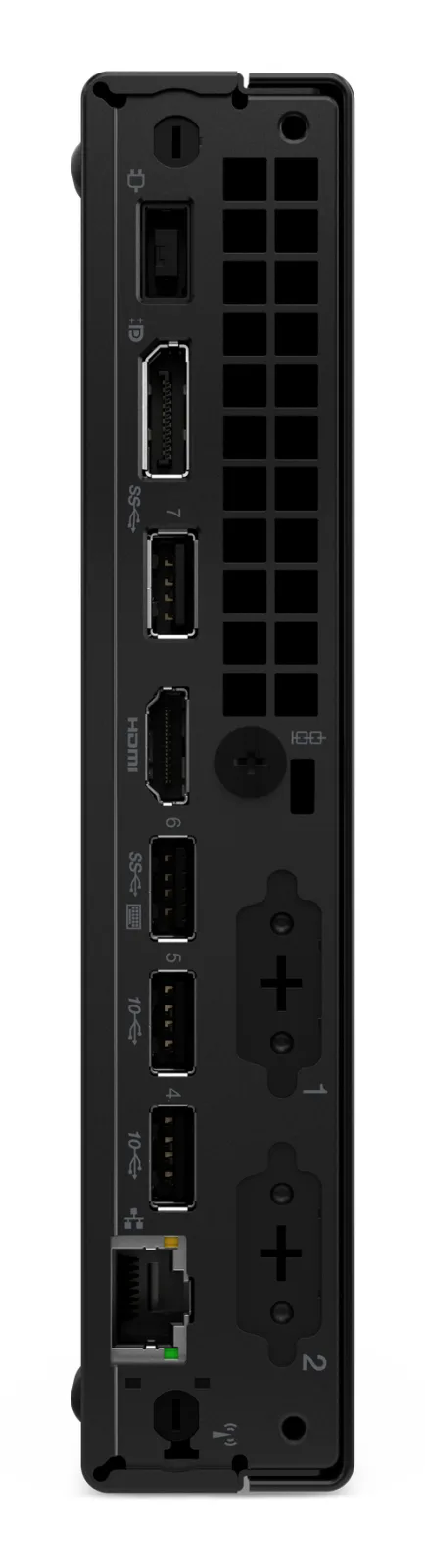

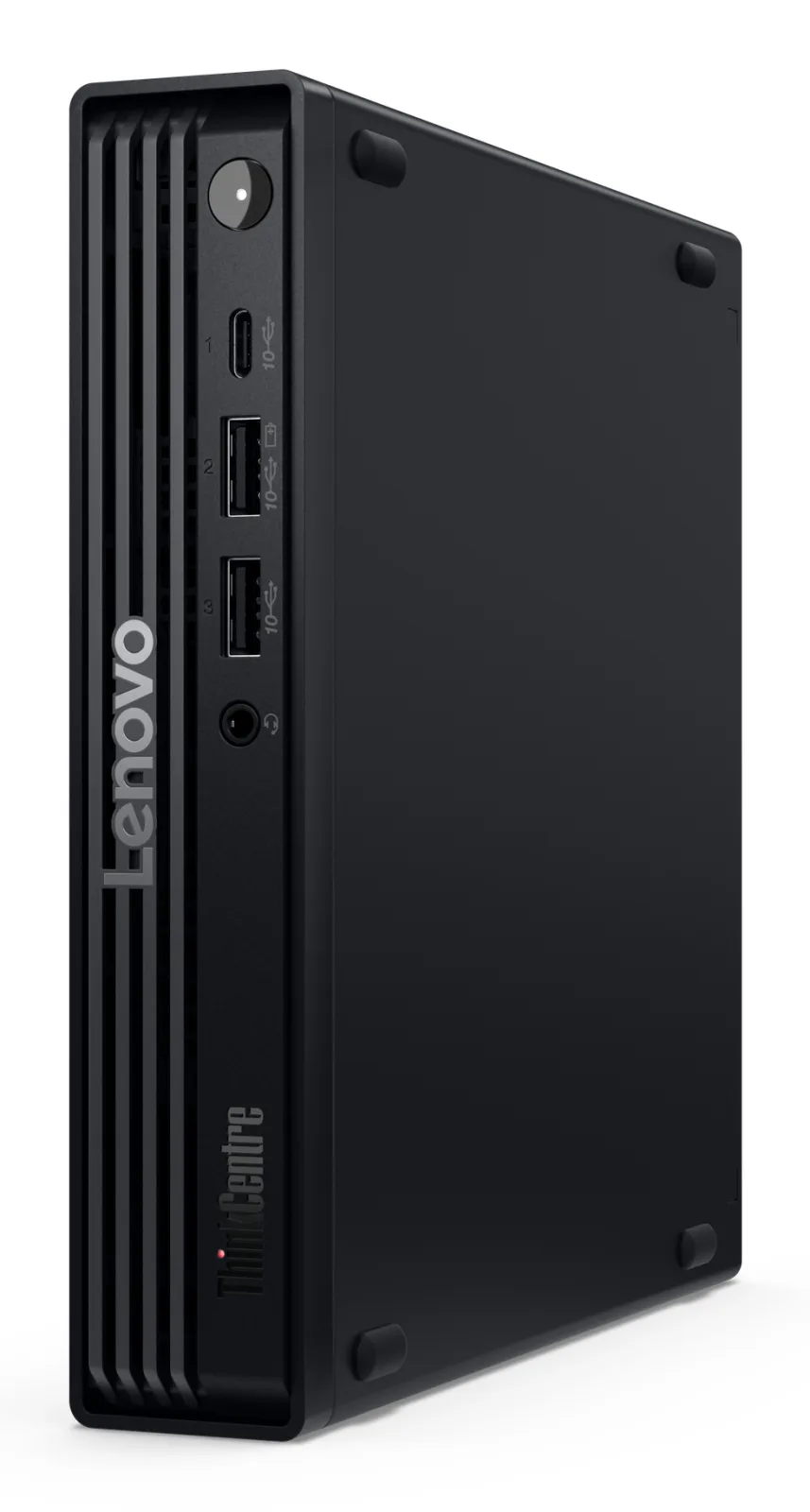

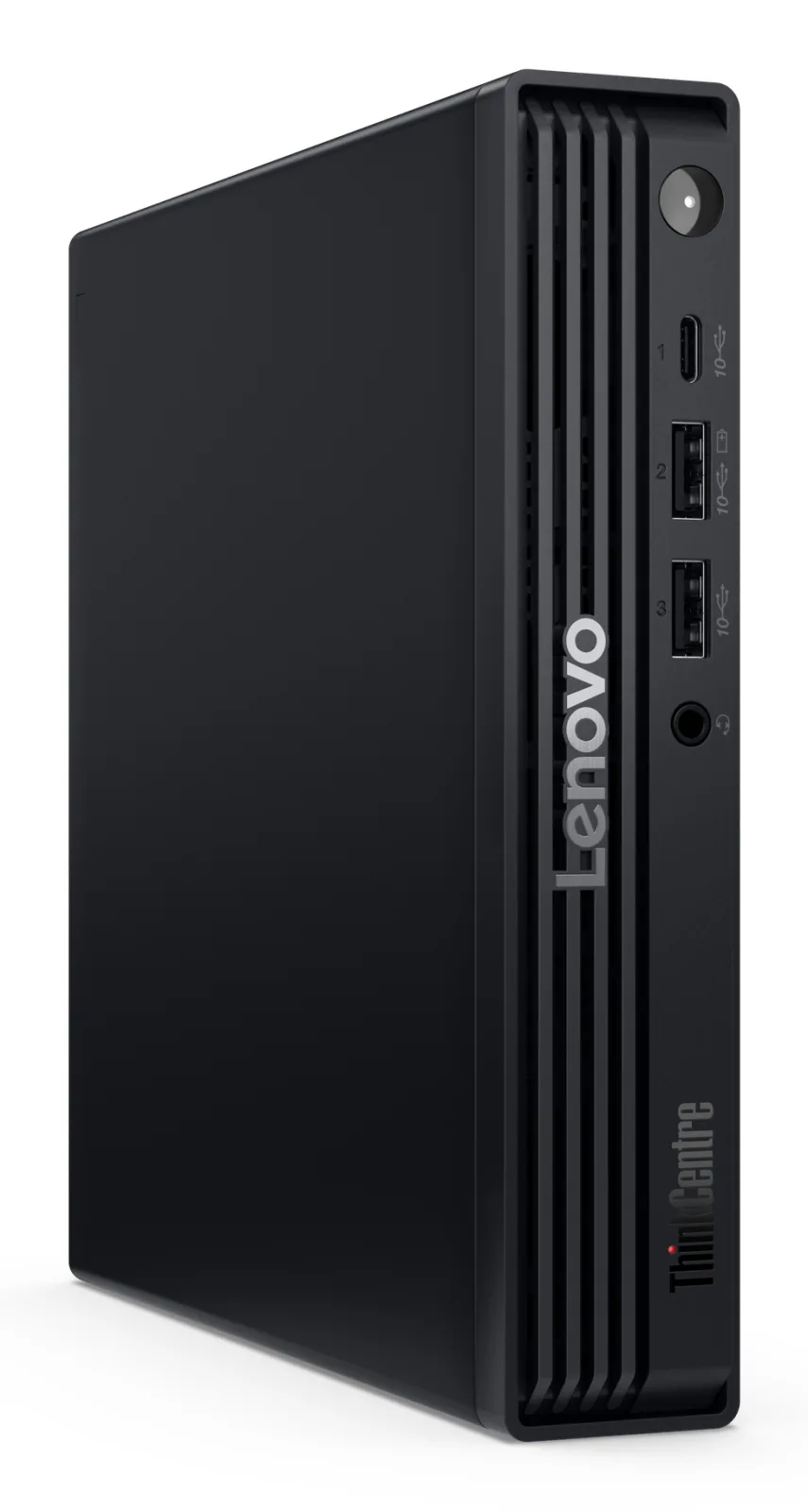

Lenovo ThinkCentre M70q Gen 6

TC M70q Gen 6 U5-225T 16GB/512GB W11P Lenovo ThinkCentre M70q Gen 6. Processor family: Intel Core Ultra 5, Processor mod...

€1,027.89 incl. VAT
In stock
Request a quote →
DeliveryCalculated for your address at checkout
WarrantyManufacturer warranty applies
TC M70q Gen 6 U5-225T 16GB/512GB W11P Lenovo ThinkCentre M70q Gen 6. Processor family: Intel Core Ultra 5, Processor model: 225T. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Wi-Fi. Operating system installed: Windows 11 Pro. Power supply: 90 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 1.18 kg. Product colour: Black

Specifications

Audio chip
Realtek ALC233VB
Audio system
High Definition Audio
Number of speakers
1
Compliance certificates
RoHS
Certification
ENERGY STAR,TCO,RoHS
Chassis type
Mini PC
Colour name
Raven black
Volume
1 L
Placement supported
Horizontal/Vertical
Cable lock slot
Yes
Cable lock slot type
Kensington
Product colour
Black
Display included
No
Discrete graphics card
No
On-board graphics card
Yes
Discrete graphics card model
Not available
On-board GPU manufacturer
Intel
On-board graphics card family
Intel® Graphics
On-board graphics card model
Intel® Graphics
Keyboard connectivity
Wired
Internal memory
16 GB
Maximum internal memory
64 GB
Internal memory type
DDR5-SDRAM
Memory layout (slots x size)
1 x 16 GB
Memory slots
2x SO-DIMM
Memory clock speed
5600 MHz
Memory channels
Dual-channel
Ethernet LAN
Yes
Ethernet LAN data rates
100,1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
LAN controller
Intel® I219-LM
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi standards
Wi-Fi 6 (802.11ax)
WLAN controller manufacturer
Intel
WLAN controller model
Intel Wi-Fi 6 AX203
Antenna type
2x2
Bluetooth
Yes
Bluetooth version
5.2
Wake-on-LAN ready
Yes
Neural processor unit (NPU)
Intel AI Boost
Sparsity support
Yes
Windows Studio effects support
Yes
AI software frameworks supported by NPU
DirectML, ONNX RT, OpenVINO, WebNN, Windows ML
Total processor performance up to
23 TOPs
NPU performance up to
13 TOPs
Operating temperature (T-T)
5 - 35 °C
Storage temperature (T-T)
-40 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 90%
Operating altitude
0 - 3048 m
Non-operating altitude
0 - 12192 m
Mouse included
Yes
Mouse connectivity
Wired
Keyboard included
Yes
Package width
250 mm
Package depth
490 mm
Package height
128 mm
Package weight
3.2 kg
Motherboard chipset
Intel B860
Password protection
Yes
Password protection type
BIOS, HDD, Power on, Supervisor
Trusted Platform Module (TPM)
Yes
Product type
Mini PC
Trusted Platform Module (TPM) version
2.0
Built-in speaker(s)
Yes
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPorts quantity
1
DisplayPort version
1.4a
HDMI ports quantity
1
HDMI version
2.1
Ethernet LAN (RJ-45) ports
1
Combo headphone/mic port
Yes
Power supply
90 W
Processor manufacturer
Intel
Processor family
Intel Core Ultra 5
Processor generation
Intel Core Ultra (Series 2)
Processor model
225T
Processor cores
10
Processor threads
10
Processor boost frequency
4.9 GHz
Performance cores
6
Efficient cores
4
Performance-core Max Turbo Frequency
4.9 GHz
Efficient-core Max Turbo Frequency
4.4 GHz
Performance-core base frequency
2.5 GHz
Efficient-core base frequency
1.9 GHz
Processor cache
20 MB
Processor cache type
Smart Cache
Processor base power
35 W
Maximum turbo power
114 W
Operating system language
English, German, Dutch, French, Italian
Operating system installed
Windows 11 Pro
Total storage capacity
512 GB
Storage media
SSD
Optical drive type
No
Number of storage drives installed
1
Total SSDs capacity
512 GB
Number of SSDs installed
1
SSD capacity
512 GB
SSD interface
PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
M.2 SSD size
2280 (22 x 80 mm)
Card reader integrated
No
Sustainability certificates
ENERGY STAR, TCO
Width
179 mm
Depth
182.9 mm
Height
36.5 mm
Weight
1.18 kg
