Apc Artikelnummer ITR-20CD2F2F11

Rack PDU 9000 Switched ZeroU 11.0kW 230V

Rack PDU 9000 Switched ZeroU 11.0kW 230V APC NetShelter PDU - Switched - IEC 60309 16A 3P+N+PE - 21 x IEC 60320 C13, 3 x...

2.031,32 € inkl. MwSt.
Geringer Bestand
Angebot anfordern →
LieferungWird an der Kasse für Ihre Adresse berechnet
GarantieHerstellergarantie gilt
Rack PDU 9000 Switched ZeroU 11.0kW 230V APC NetShelter PDU - Switched - IEC 60309 16A 3P+N+PE - 21 x IEC 60320 C13, 3 x IEC 60320 C19 - 16 A - 400 V Input - 230 V AC Output - Circuit Protection, Accidental Power Shutdown - 0U Network (RJ-45) - 1.82 m Cord Length - Vertical - Rack-mountable - Tower

Spezifikationen

Certification
CUL listed, EN 55022 class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC part 15 class A, ICES-003, UL listed, VDE
PDU types
Switched
Type
Three-phase
Rack capacity
0U
Mounting
Vertical
Product colour
Black

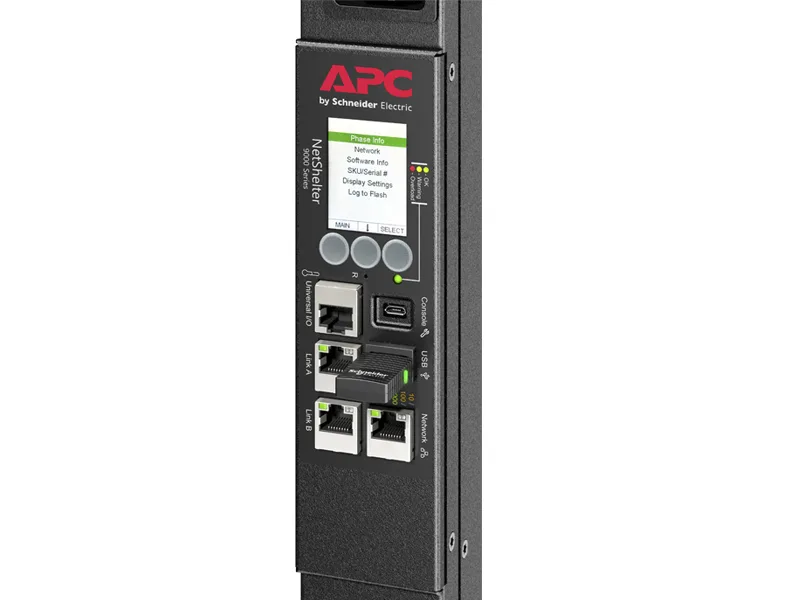

Display
LCD
On/off switch
Yes
Daisy chain
Yes
Reset button
Yes
Cable length
1.8 m
Operating temperature (T-T)
-5 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3048 m
Non-operating altitude
0 - 15240 m
Package weight
8.95 kg
Package width
165 mm
Package depth
114 mm
Package height
2002 mm
AC outlets quantity
24 AC outlet(s)

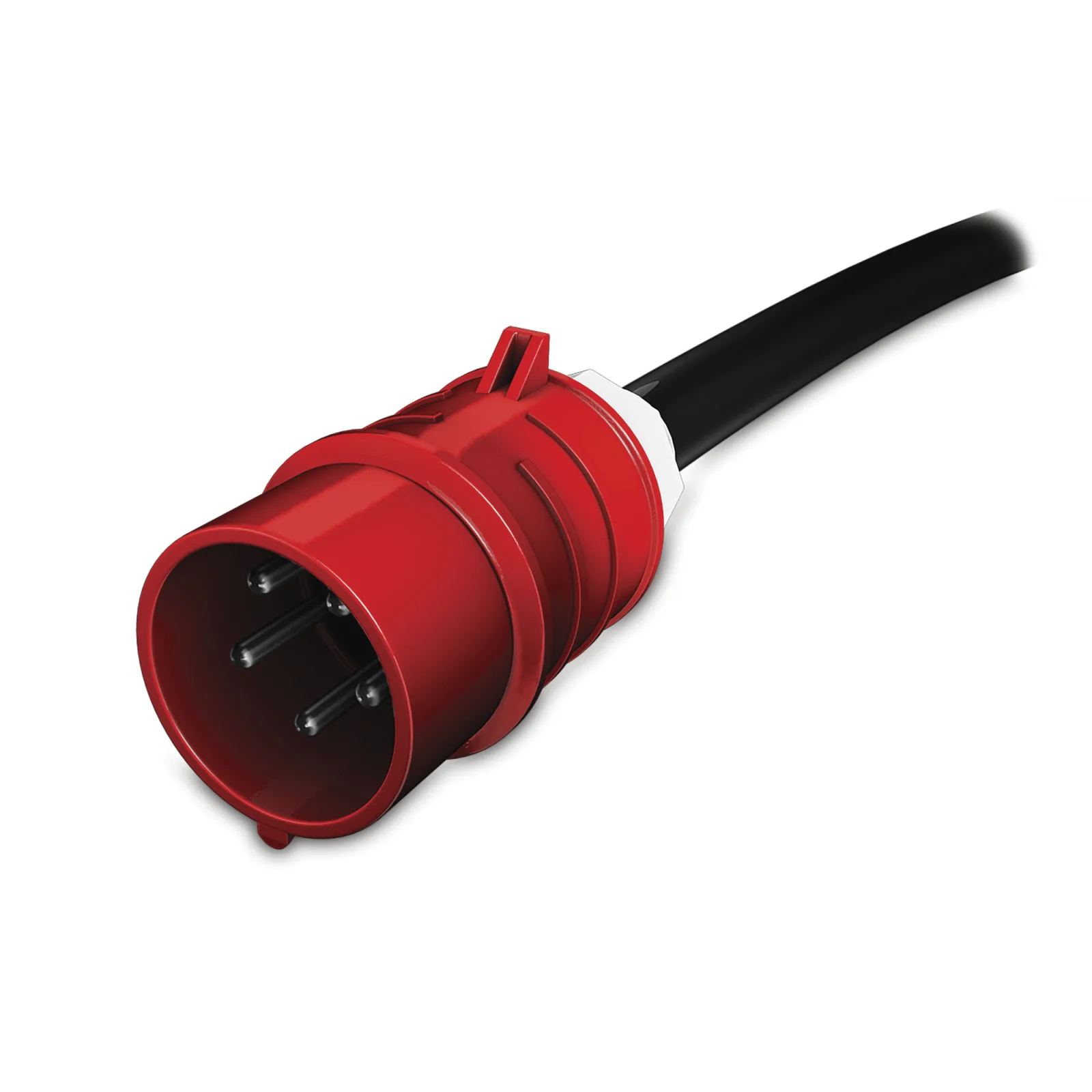

Power plug
IEC 60309

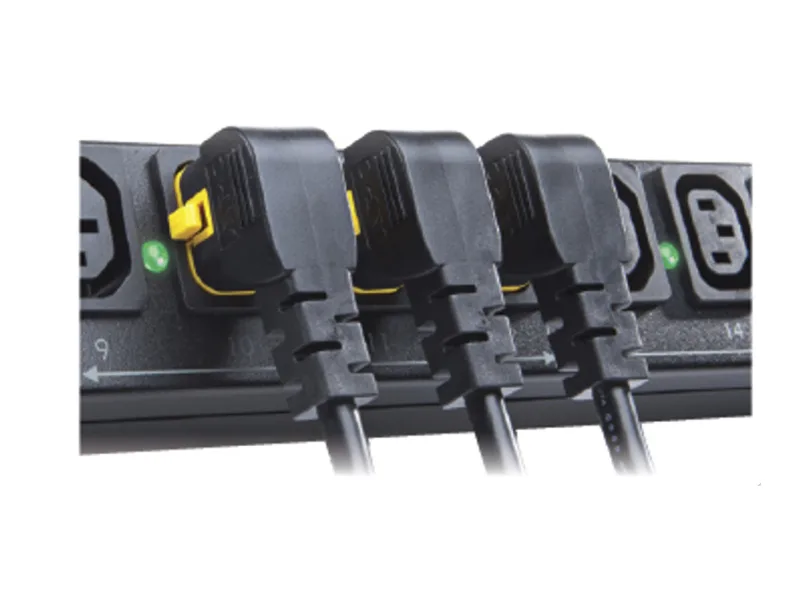

AC outlet types
C13 coupler, C19 coupler
Nominal input voltage
400 V
AC input frequency
50 - 60 Hz
Maximum current
16 A
Nominal output voltage
230 V
Output voltage
230 V
Load capacity
11040 VA
Maximum input current per phase
16 A
Maximum total current draw per phase
16 A
Maximum power
11000 W
Width
55 mm
Depth
46 mm
Height
1792 mm
Weight
7 kg
