Startech.Com Artikelnummer ITR-12A454587A

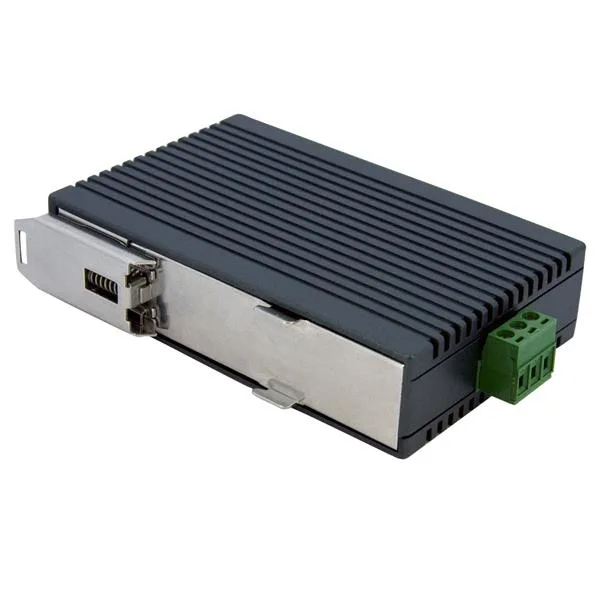

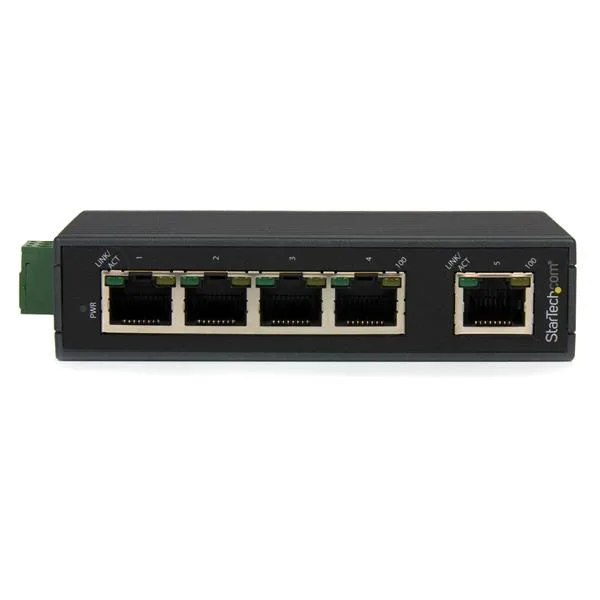

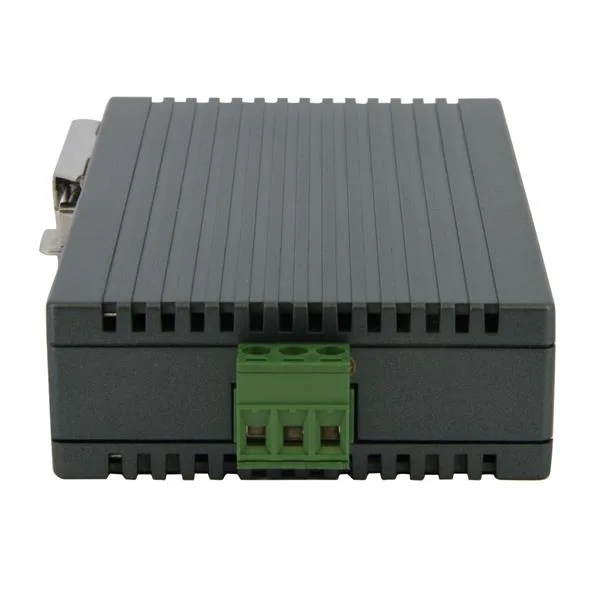

5 Port Industrial 10/100 Ethernet Switch

5 Port Industrial 10/100 Ethernet Switch StarTech.com 5 Port Industrial Ethernet Switch - DIN Rail Mount - 10/100 Unmana...

103,36 € inkl. MwSt.
Geringer Bestand
Angebot anfordern →
LieferungWird an der Kasse für Ihre Adresse berechnet
GarantieHerstellergarantie gilt
5 Port Industrial 10/100 Ethernet Switch StarTech.com 5 Port Industrial Ethernet Switch - DIN Rail Mount - 10/100 Unmanaged Network Switch - IP30-rated - Energy-Efficient Ethernet - 2 Layer Supported - 2.12 W Power Consumption - Twisted Pair - Rail-mountable

Spezifikationen

Certification
CE, FCC
Store-and-forward
Yes
Jumbo frames support
No
Rack mounting
Yes
Product colour
Black
Housing material
Plastic
LED indicators
Activity, Link, Power
International Protection (IP) code
IP30
Regulatory Approvals
EN61000-6-2, EN61000-6-4, EN61000-4-3, EN61000-4-4, EN61000-4-6, EN61000-4-8, IEC60068-2-6 Fc, IEC60068-2-27 Ea
Master (outer) case width
425 mm
Master (outer) case length
388 mm
Master (outer) case height
236 mm
Harmonized System (HS) code
85176990
Products per master (outer) case
10 pc(s)
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
10G support
No
Full duplex
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Operating temperature (T-T)
-10 - 60 °C
Storage temperature (T-T)
-25 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Manual
Yes
Terminal block included
Yes
Package width
177 mm
Package depth
201 mm
Package height
81 mm
Package weight
312 g
Maximum cable length
100 m
Buffer size
56 KB
Maximum data transfer rate
200 Mbit/s
Mean time between failures (MTBF)
1179133 h
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Input voltage
12 - 48 V
Power consumption (max)
2.12 W
Width
25 mm
Depth
70 mm
Height
110 mm
Weight
148 g
