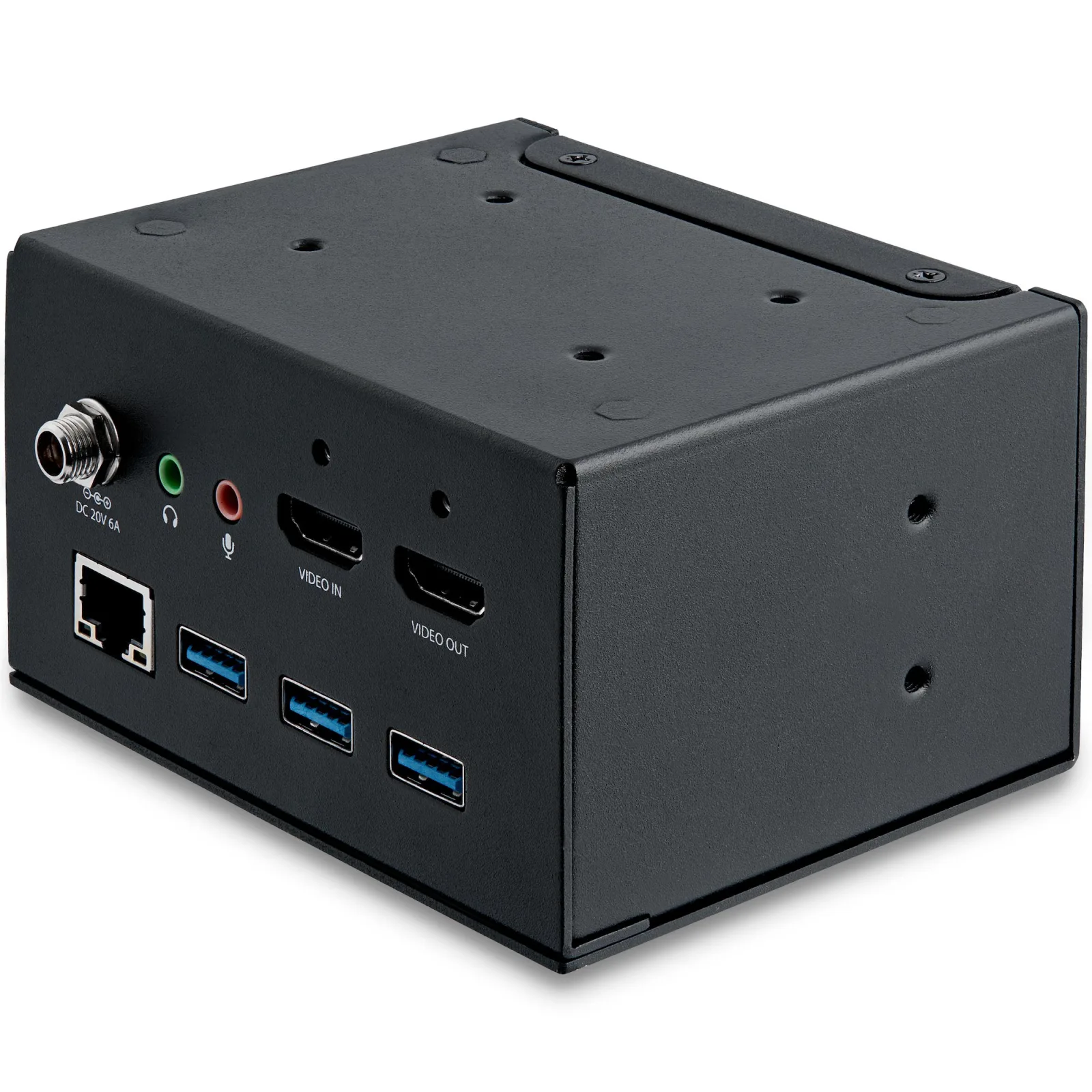

Module Docking Station Connectivity Box StarTech.com Laptop docking module for the conference table connectivity box lets you access boardroom or huddle space devices - Set up conference calls using applications such as Skype for Business - USB-C or USB-A laptop docking - USB-A charging port - USB-C Power Delivery 2.0 - Table-mounting bracket included - Laptop docking module for the conference table connectivity box lets you access boardroom devices - Set up conference calls using applications such as Skype for Business - Boardro
Startech.Com SKU ITR-34DDF01749
Module Docking Station Connectivity Box
Module Docking Station Connectivity Box StarTech.com Laptop docking module for the conference table connectivity box let...
١٩٧٫١٢ €
شامل الضريبة
مخزون محدود
المواصفات
- Products per master (outer) case
- 4 pc(s)
- Master (outer) case width
- 273 mm
- Master (outer) case length
- 430 mm
- Master (outer) case height
- 246 mm
- Harmonized System (HS) code
- 84733020
- Ethernet LAN
- Yes
- Networking standards
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Auto MDI/MDI-X
- Yes
- Full duplex
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 65 °C
- Operating relative humidity (H-H)
- 20 - 80%
- Chipset
- DisplayLink - DL-6950, Genesys Logic - GL850G, Texas Instruments - TPS65982, Parade Technologies - PS176, VIA Labs - VL813, Realtek - RTL8153

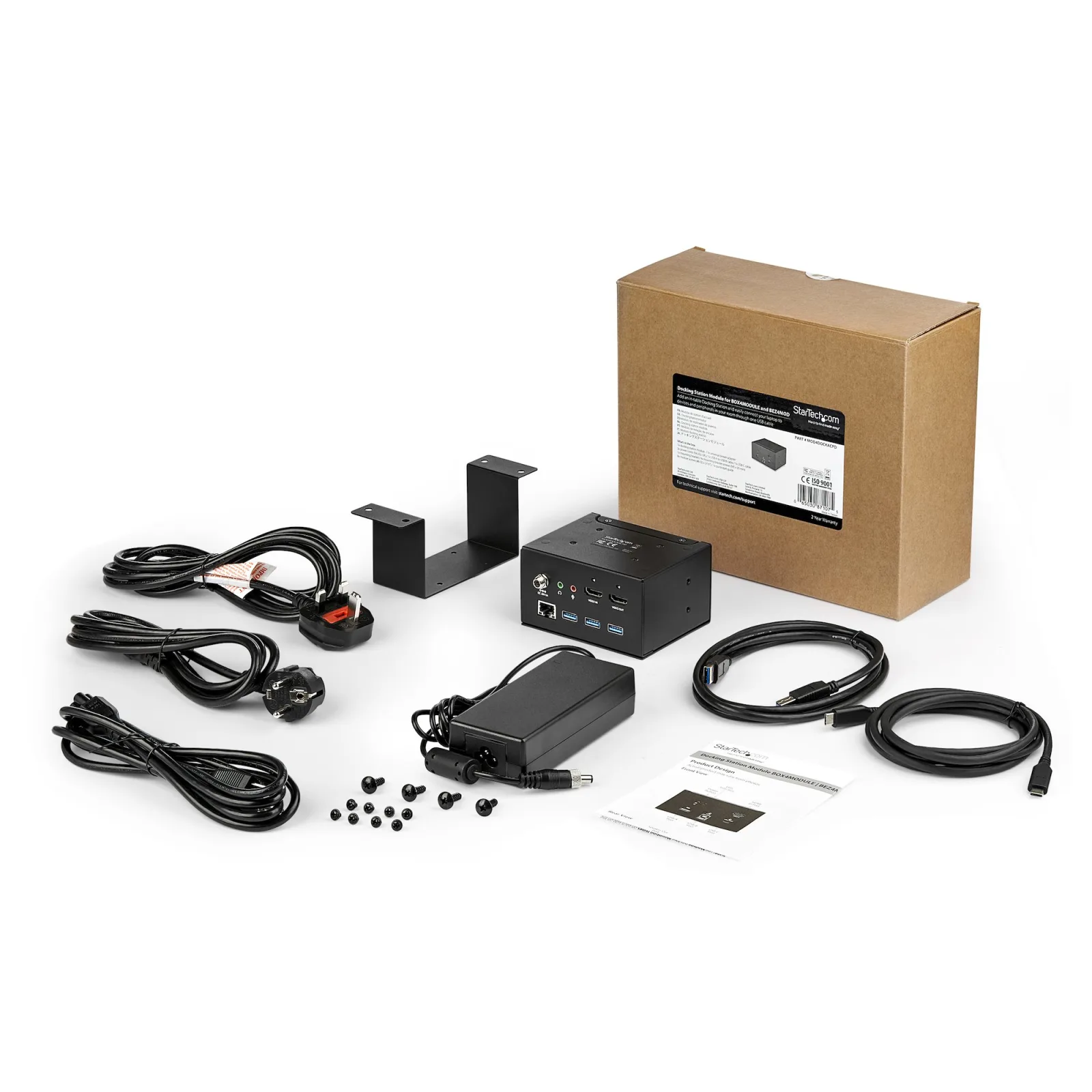

- Mounting brackets included
- Yes
- Cables included
- USB Type-A to USB Type-B, USB Type-C to USB Type-C
- AC adapter included
- Yes
- Quick start guide
- Yes
- Number of screws
- 12
- Package width
- 211 mm
- Package depth
- 251 mm
- Package height
- 10 mm
- Package weight
- 2.1 kg
- Card reader integrated
- No
- Data transfer rate
- 5 Gbit/s
- Maximum digital resolution
- 3840 x 2160 pixels
- Product colour
- Black
- LED indicators
- Power
- UASP support
- Yes
- Housing material
- Aluminium, Plastic
- Certification
- CE, FCC, TAA, REACH
- Connectivity technology
- Wired

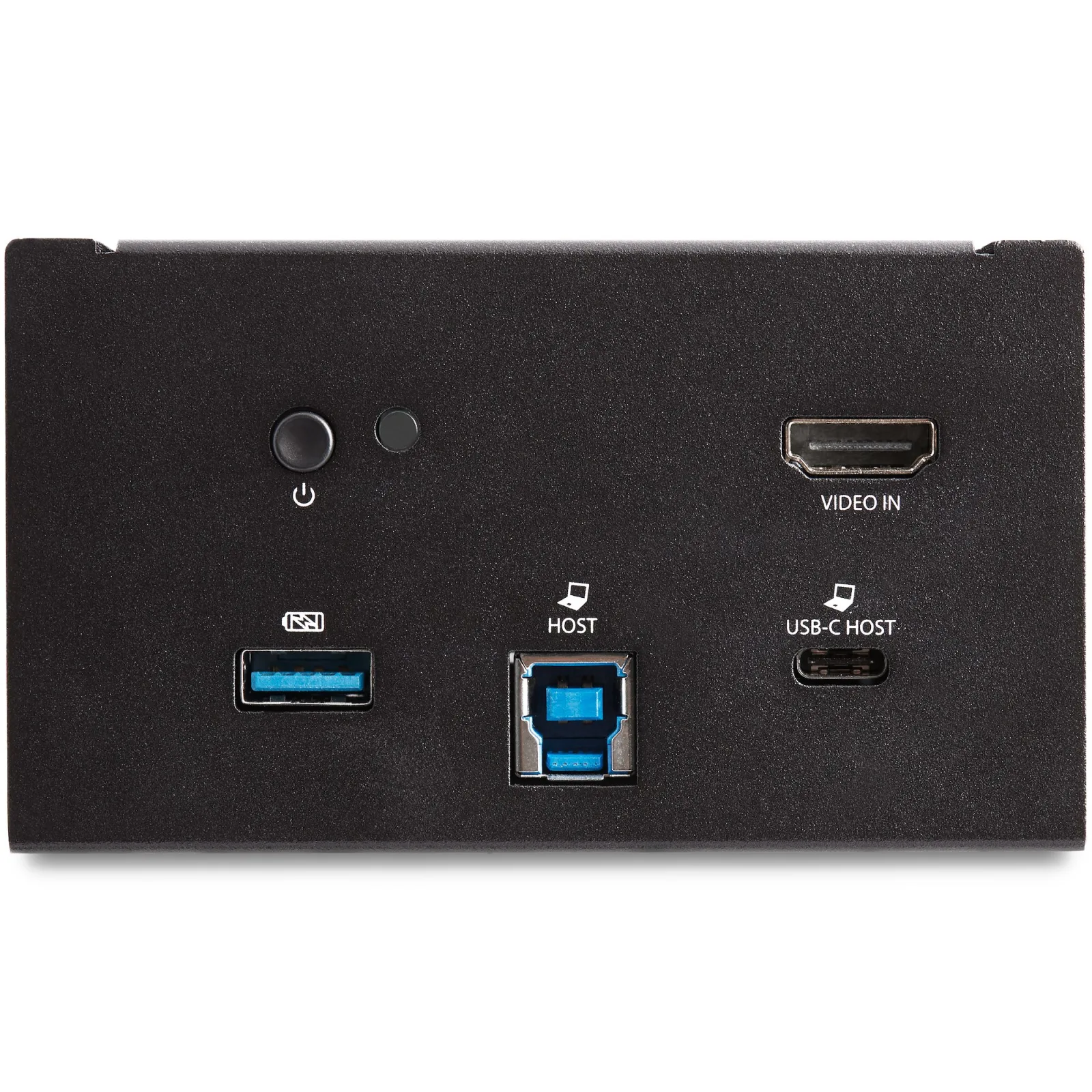

- Host interface
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- HDMI ports quantity
- 3
- Microphone in
- Yes
- Combo headphone/mic port
- No
- Headphone outputs
- 1
- Headphone connectivity
- 3.5 mm
- AC input voltage
- 100 - 240 V
- Input current
- 2 A
- Output voltage
- 20 V
- Output current
- 6 A
- Power consumption (typical)
- 60 W
- Power plug type
- Type N
- Compatible power plug types
- EU, UK, US
- Windows operating systems supported
- Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
- Mac operating systems supported
- Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
- Other operating systems supported
- ChromeOS
- Compliance certificates
- RoHS
- Width
- 94 mm
- Depth
- 12 mm
- Height
- 61 mm
- Weight
- 588 g
