APC Smart-UPS X 2200VA Short Depth Tower APC by Schneider Electric Smart-UPS Line-interactive UPS - 2.20 kVA/1.98 kW - 4U Rack/Tower - 3 Hour Recharge - 10 Minute Stand-by - 208 V, 230 V Input - 208 V AC, 230 V AC Output - 2 x IEC 320-C19, 2 x IEC Jumper, 8 x IEC 320-C13 Receptacle(s) - USB
Apc SKU ITR-369608472A

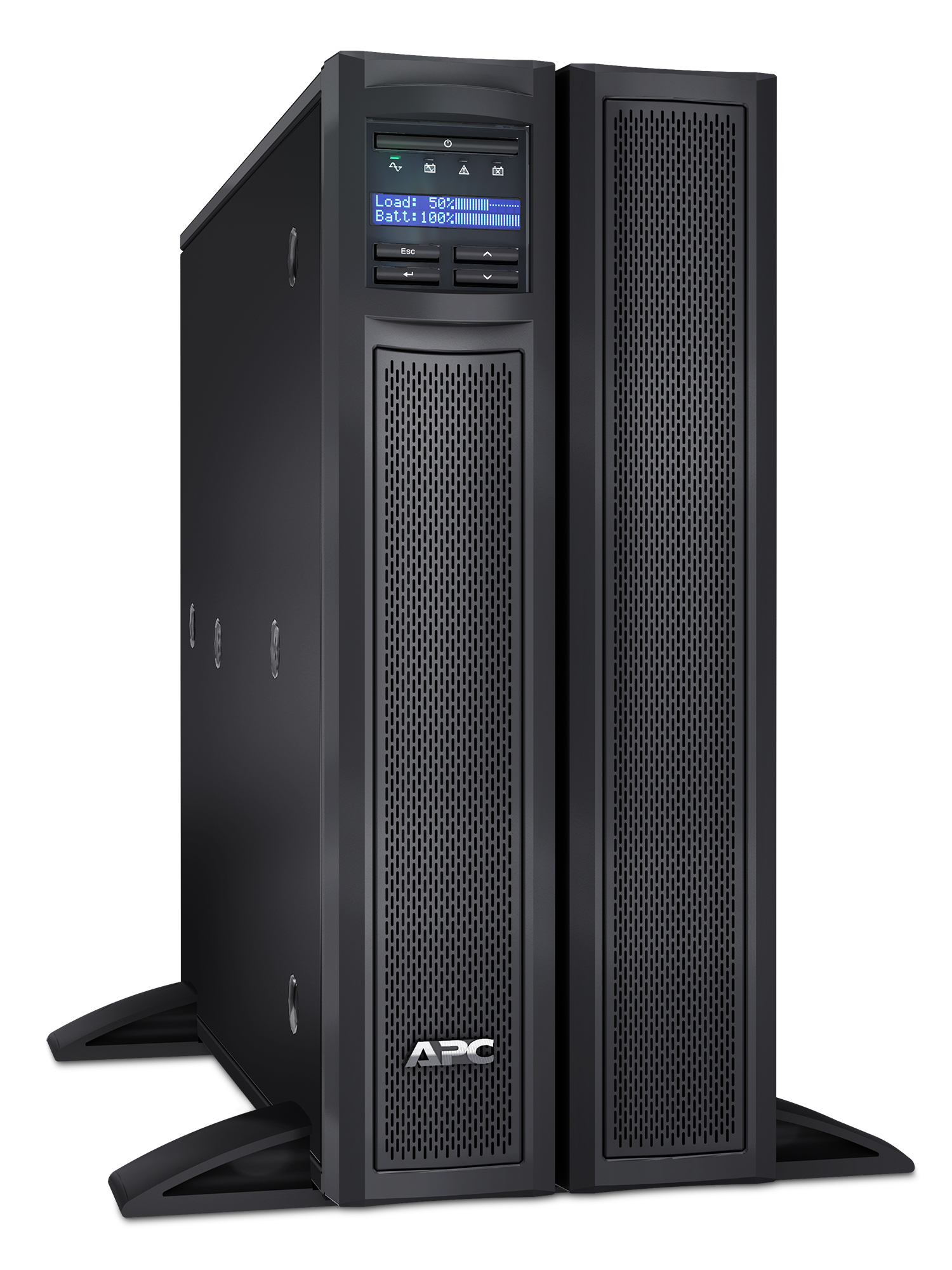

APC Smart-UPS X 2200VA Short Depth Tower
APC Smart-UPS X 2200VA Short Depth Tower APC by Schneider Electric Smart-UPS Line-interactive UPS - 2.20 kVA/1.98 kW - 4...
٢٬٢٢١٫٧٧ €
شامل الضريبة
متوفر
المواصفات
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 702 VAh

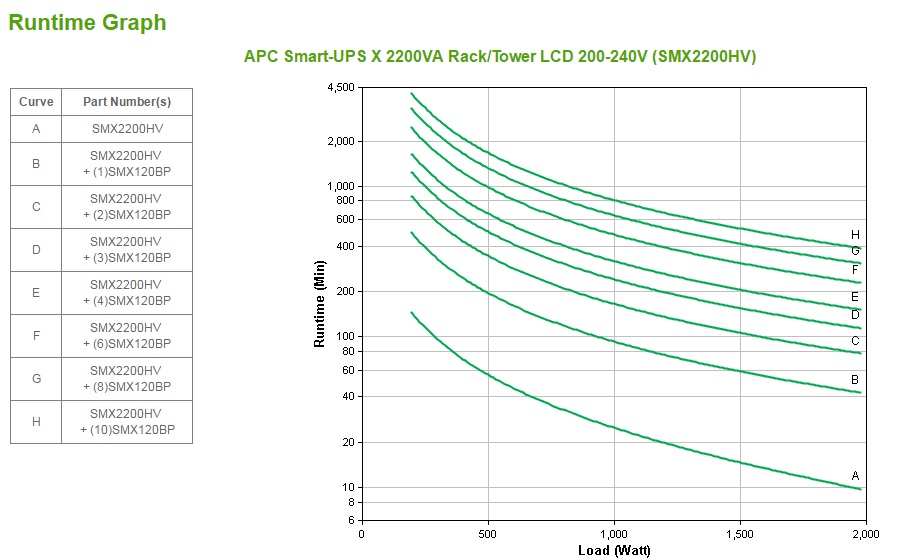

- Typical backup time at full load
- 9.8 min
- Typical backup time at half load
- 25.3 min
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 3 h
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
- Cold start
- Yes
- Compliance certificates
- RoHS
- Certification
- CE, CSA, EAC, EN 50091-1, EN 50091-2, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 CL A, IEC 60950, IRAM, RCM, UL 1778, VDE, WEEE, REACH
- Form factor
- Rackmount/Tower
- Rack capacity
- 4U
- Cable length
- 2 m
- Product colour
- Black, Stainless steel
- Display type
- LCD
- LED indicators
- Status, Battery replacement
- UPS topology
- Line-Interactive
- Output power capacity
- 2.2 kVA
- Output power
- 1980 W
- Waveform
- Sine
- Input operation voltage (min)
- 140 V
- Input operation voltage (max)
- 280 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 208 V
- Output operation voltage (max)
- 240 V
- Output frequency regulation
- 50/60 Hz
- Automatic Voltage Regulation (AVR)
- Yes
- Surge energy rating
- 645 J
- Hold time (min)
- 2 ms
- Hold time (max)
- 10 ms
- Efficiency
- 98.1%
- Emergency Power Off (EPO)
- Yes
- Noise level
- 55 dB
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Auto-restart
- Yes
- Products per pallet
- 6 pc(s)
- Harmonized System (HS) code
- 85078000
- Total carbon footprint (kg of CO2e)
- 3397.7
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
- Packaging content
- Web/SNMP Management Card
- Rack mount kit
- Yes
- Cables included
- RS-232, USB cable
- Management card included
- No
- Manual
- Yes
- Quick installation guide
- Yes
- Temperature sensor
- Yes
- Software CD
- Yes
- Package width
- 586 mm
- Package depth
- 633 mm
- Package height
- 330 mm
- Package weight
- 47.7 kg
- AC outlet types
- C13 coupler, C19 coupler
- Power plug
- C20 coupler
- AC outlets quantity
- 10 AC outlet(s)
- Number of output IEC jumpers
- 2
- USB port
- Yes
- SmartSlot
- Yes
- SmartConnect port
- No
- Width
- 178 mm
- Depth
- 483 mm
- Height
- 432 mm
- Weight
- 38.6 kg
