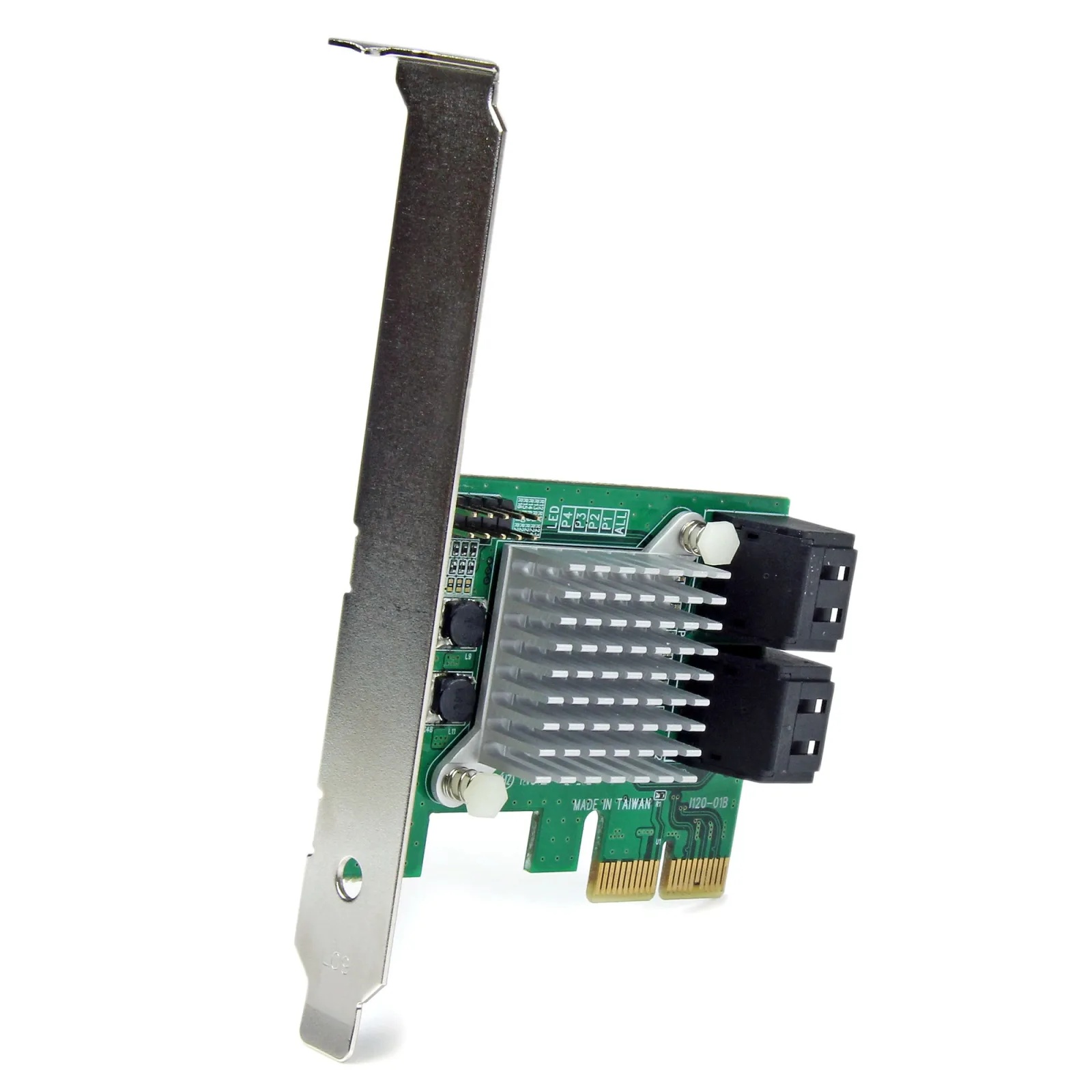

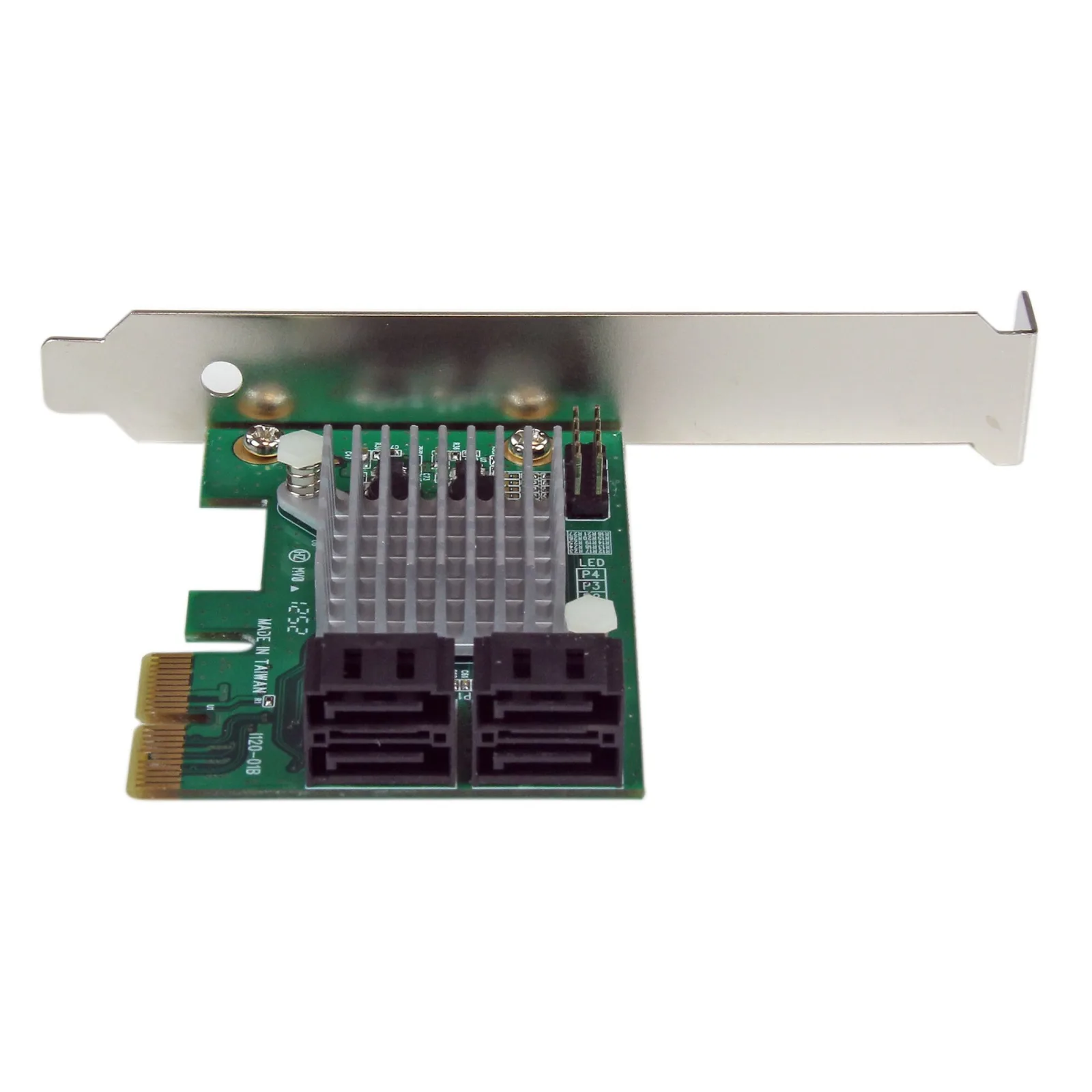

4 Port PCIe SATA III Controller Card. StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering - PCIe SATA 3 Controller Adapter - RAID Supported - JBOD, 1, 0, 1+0 RAID Level - 4 Total SATA Port(s) - 4 SATA Port(s) Internal - PC, Mac, Linux
Startech.Com SKU ITR-017907EDFF
4 Port PCIe SATA III Controller Card.
4 Port PCIe SATA III Controller Card. StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with Hyper...
١٠٢٫٦٦ €
شامل الضريبة
متوفر
المواصفات
- Master (outer) case width
- 382 mm
- Master (outer) case length
- 498 mm
- Master (outer) case height
- 322 mm
- Products per master (outer) case
- 60 pc(s)
- Harmonized System (HS) code
- 84733080
- Operating temperature (T-T)
- 5 - 50 °C
- Storage temperature (T-T)
- -25 - 70 °C
- Operating relative humidity (H-H)
- 20 - 80%
- Manual
- Yes
- Drivers included
- Yes
- PCI Card form factor
- Full-height (low-profile)
- RAID levels
- 0, 1, 10, JBOD
- Data transfer rate
- 6 Gbit/s
- SSD support
- Yes
- Chipset
- Marvell - 88SE9230
- Logical block addressing (LBA) support
- 48 bit
- Supported storage drive interfaces
- Serial ATA, Serial ATA III
- Host interface
- PCI Express
- PCI Express slots version
- 2.0
- Internal SATA ports quantity
- 4
- Windows operating systems supported
- Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
- Mac compatibility
- Yes
- Mac operating systems supported
- Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
- Linux operating systems supported
- Yes
- Server operating systems supported
- Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
- Sustainability compliance
- Yes
- Compliance certificates
- CE, RoHS
- Width
- 120 mm
- Depth
- 70 mm
- Height
- 20 mm
- Weight
- 49 g
- Package width
- 144 mm
- Package depth
- 174 mm
- Package height
- 30 mm
- Package weight
- 141 g
